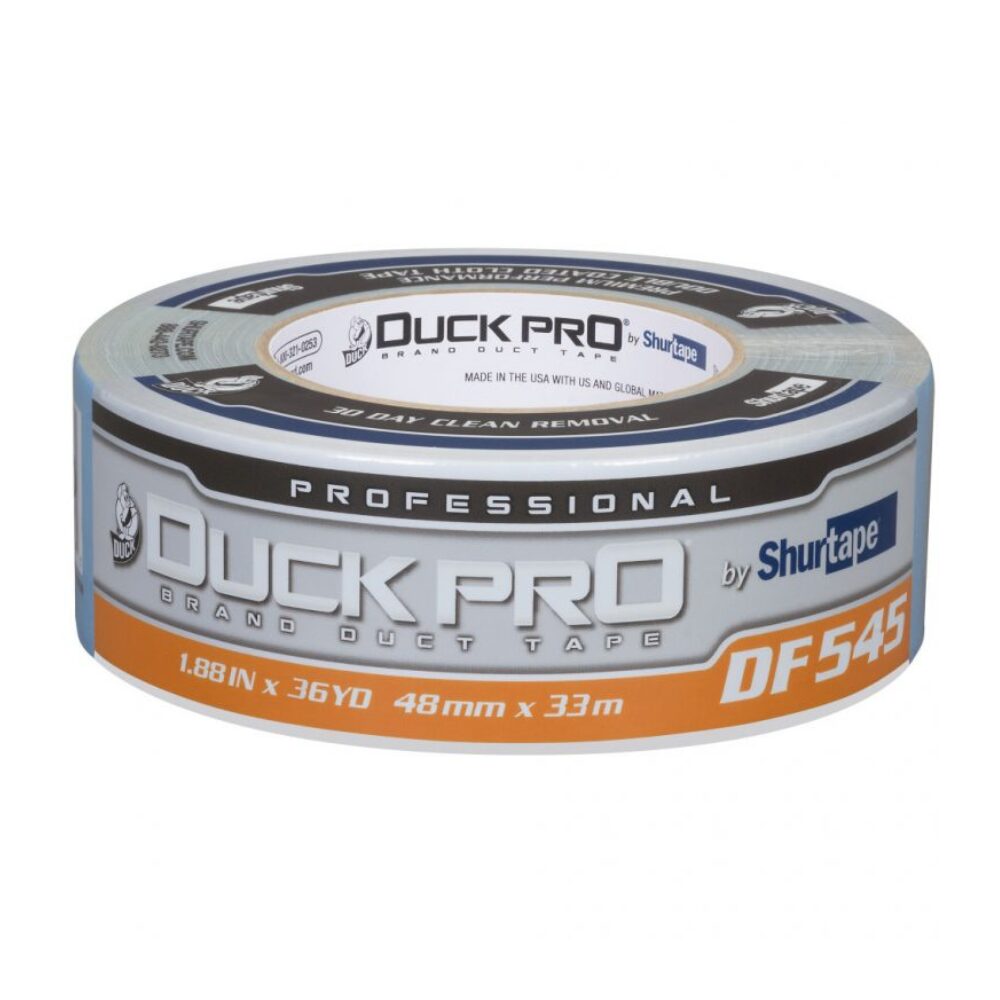

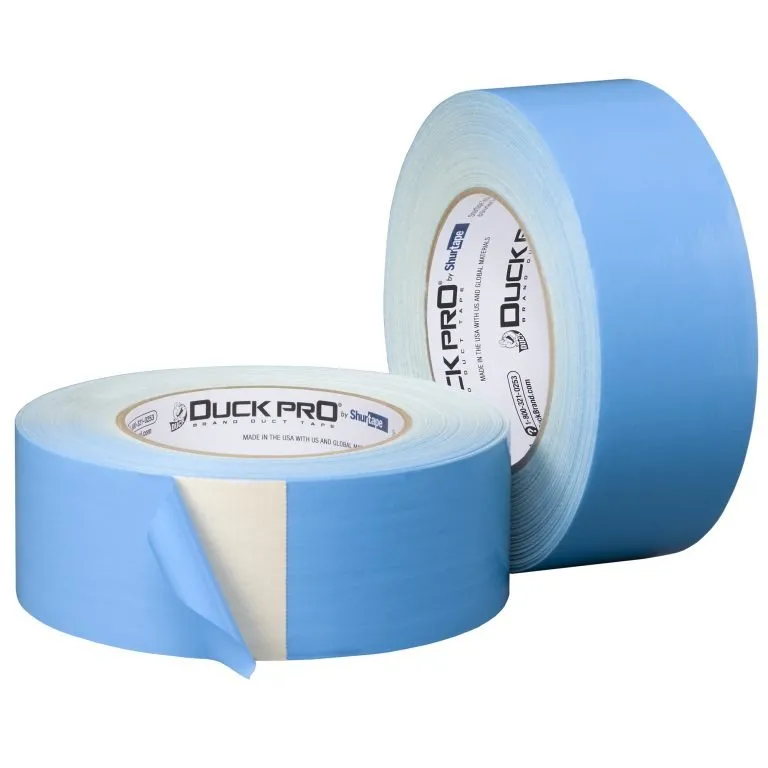

Product: DF 545 Duck Pro by Shurtape Professional Grade Premium Double-Coated Cloth Tape – Blue 48 mm × 33 m

Features & Applications
Professional grade, premium performance double-coated cloth tape. Excellent adhesion to smooth and irregular surfaces. High tensile strength. Easy to unwind. 30-day indoor, residue-free removal.

Specifications
Learn more about DF 545 Duck Pro® by Shurtape® in depth by exploring all of its features and uses. You can also visit TapeUniversity.com to learn more about choosing and using tapes.

Markets
Building & Construction – Abatement, Containment & Restoration.
Transportation – Automotive Aftermarket.
Converting – Double-Coated Tape.
Industrial MRO – Facilities Maintenance.
Building & Construction – General Construction.
Transportation – General Transportation.
Specialty – Made in USA.
Industrial MRO – Mounting & Splicing.
Arts & Entertainment – Stage & Area Prep.

Construction
Backing: Polyester/cotton blend cloth.
Adhesive: Rubber-based adhesive.
Liner: Siliconized, polyethylene release liner.

Properties & Technical Data
Product Nomenclature: DF 545 Duck Pro® by Shurtape®.
Adhesion to Stainless Steel – Exposed Side: 52 oz/in width (5.69 N/10 mm).
Adhesion to Stainless Steel – Liner Side: 64 oz/in width (7.0 N/10 mm).
Elongation: 8%.
Service Temperature Range: 50 F to 200 F (10 C to 93 C).
Tensile: 24 lbs/in width (42.0 N/10 mm).
Thickness – Nominal: 10.5 mils (0.27 mm).
Physical and performance characteristics shown above are obtained from tests recommended by PTSC, ASTM, government agencies or Shurtape Technologies, LLC, Quality Assurance and Technical Service departments and do not represent product specifications or a guarantee of product performance. Individual rolls may vary from these standards (or physical properties). The user should determine whether the product is fit for a particular purpose and is suitable for the user’s method of application before use.

Downloads

• Technical Data Sheet.
• Regulatory Compliance Letter.

Sizes & Colors
Colors Available: Natural (NAT).
Lengths Available: 36.1 yd.
Widths Available: 1.88 in.
Sizes and colors disclaimer: Lead times may apply. Please contact Shurtape customer service for information related to stock and non-stock sizes and colors.

Storage & Usage Conditions
Tape should be stored in its original packaging in a cool, dry area away from direct sunlight and should be used within 12 months of date of shipment. Surfaces to which tape is applied should be clean, dry and free of grease, oil or other contaminants. To remove the blue liner, use scissors, a knife or blade to cut a small slit in the tape at the desired length. Then, hand tear the rest of the tape for easy liner separation.

Applicable Standards
ASTM D-4236
