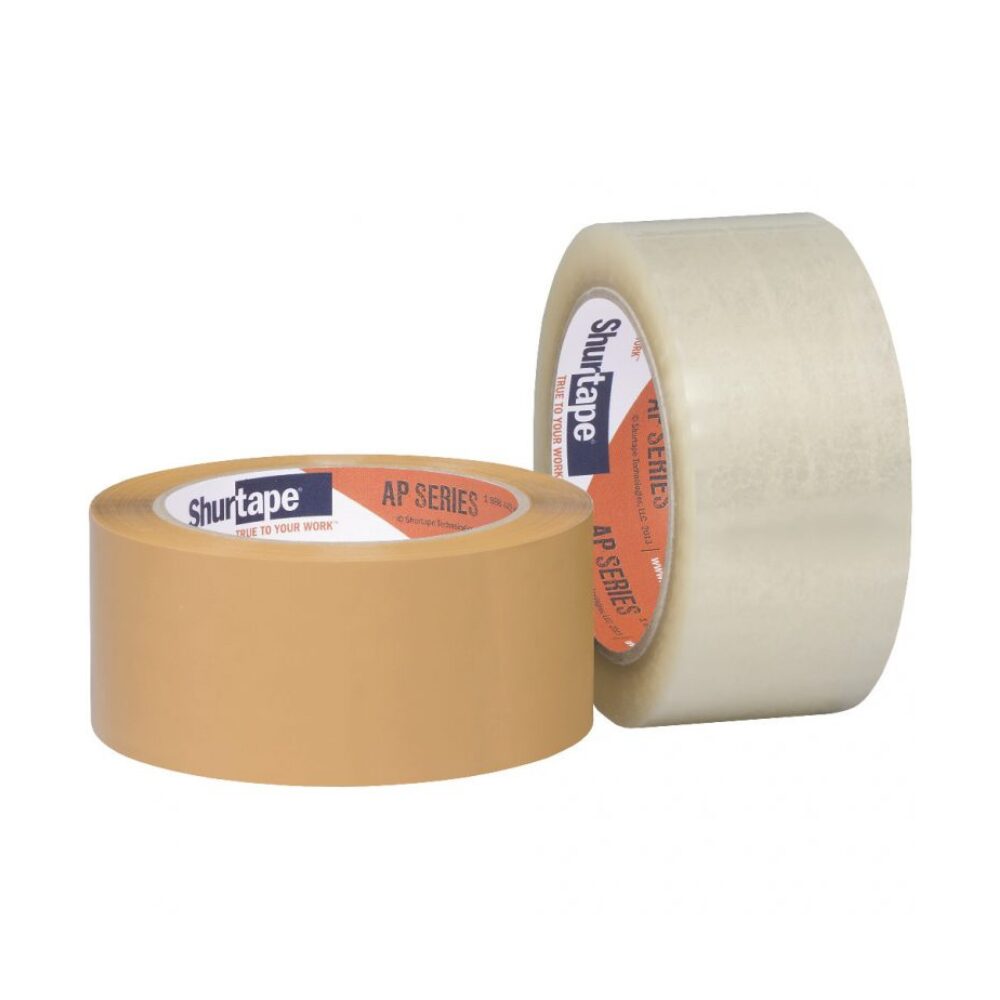

AP 101 is a general purpose grade, light duty acrylic packaging tape designed for reliable performance in a variety of packaging applications. It is UV-resistant, offers excellent aging characteristics, and performs effectively in a wide range of temperatures.
Specifications:
Learn more about AP 101 in depth by exploring all of its features and uses. You can also visit TapeUniversity.com to learn more about choosing and using tapes.
Markets:
Packaging Solutions – Carton Sealing
Packaging Solutions – Manual Carton Sealing
Converting – Packaging Tape
Industrial MRO – Steel Pipe Coating
Construction:
Backing: 25 micron cast biaxially oriented polypropylene film
Adhesive: Emulsion acrylic adhesive
Liner: NA
Properties & Technical Data:
Product Nomenclature: AP 101
| Property |
Standard |
Metric |
| Adhesion to Stainless Steel |
19 oz/in width |
2.08 N/10 mm |
| Application Temperature Range |
20°F to 110°F |
-7°C to 43°C |
| Elongation |
150% |
150% |
| Service Temperature Range |
-20°F to 180°F |
-29°C to 82°C |
| Tensile |
20 lbs/in width |
35.0 N/10 mm |
| Thickness |
1.6 mils |
0.041 mm |
Physical and performance characteristics shown above are obtained from tests recommended by PSTC, ASTM, government agencies or Shurtape Technologies, LLC, Quality Assurance and Technical Service departments and do not represent a guarantee of product performance. Individual rolls may vary slightly from these averages. The user should determine whether the product is fit for a particular purpose and is suitable for the user’s method of application before use.
Downloads:
Sizes & Colors:
Colors Available: Tan (TAN), Clear (CLR)
Lengths Available: 54.6 yd, 109.3 yd, 1000 yd, 1500 yd
Widths Available: 1.88 in, 2.83 in
Sizes and colors disclaimer: Lead times may apply. Please contact Shurtape customer service for information related to stock and non-stock sizes and colors.
Storage & Usage Conditions:
Tape should be stored in its original packaging in a cool, dry area away from direct sunlight and should be used within 12 months of date of shipment. Surfaces to which tape is applied should be clean, dry and free of grease, oil or other contaminants.
Applicable Standards:
FDA Indirect Contact CFR 21, 175.105
